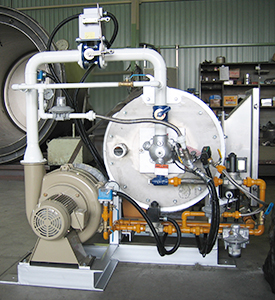

Hot-air generator
Broadly applicable as the heat source for hot-air dryers and heating equipment.
Exactly desired drying air temperatures can be maintained by proportional control. As the heat source, the customer can choose from among gas, electricity, steam, liquid fuel, etc.

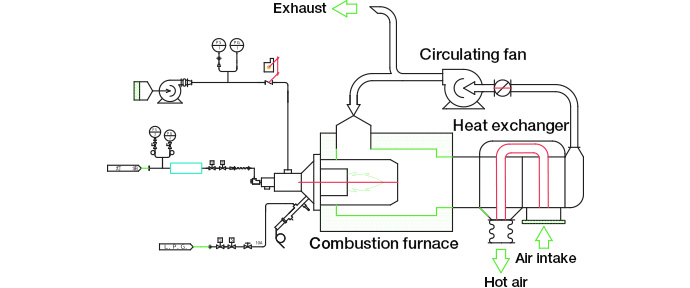

Indirect-heating hot-air generating furnace
| Type | Maximum heating value(KW) | Motive power(KW) | Temperature range(℃) | Hot-air flow rate(Nm3/h) | Hot-air quantity(kg/h) |
|---|---|---|---|---|---|
| HA-1E-S | 97 | 3.7 | 110 to 300 | 560 | 735 |
| HA-1E-H | 200 to 500 | 340 | 450 | ||
| HA-2E-S | 166 | 5.4 | 110 to 300 | 1040 | 1350 |
| HA-2E-H | 200 to 500 | 595 | 770 | ||
| HA-3E-S | 255 | 5.5 | 110 to 300 | 1620 | 2100 |
| HA-3E-H | 200 to 500 | 890 | 1150 | ||
| HA-4E-S | 453 | 10.3 | 110 to 300 | 2900 | 3750 |
| HA-4E-H | 200 to 500 | 1620 | 2100 | ||
| HA-5E-S | 724 | 11.4 | 110 to 300 | 4640 | 6000 |
| HA-5E-H | 200 to 500 | 2590 | 3350 | ||
| HA-6E-S | 1060 | 16.5 | 110 to 300 | 6800 | 8800 |
| HA-6E-H | 200 to 500 | 3790 | 4900 | ||
| HA-7E-S | 1530 | 18 | 110 to 300 | 9820 | 12700 |
| HA-7E-H | 200 to 500 | 5490 | 7100 |

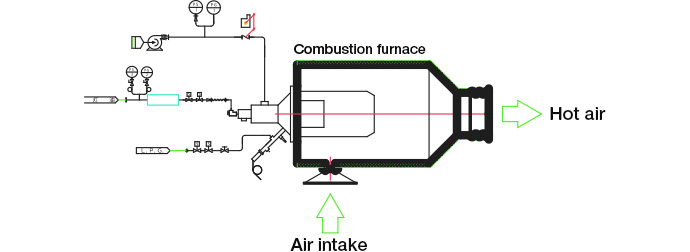

Direct-heating hot-air generating furnace
| Type | Maximum heating value(KW) | Motive power(KW) | Temperature range(℃) | Hot-air flow rate(Nm3/h) | Hot-air quantity(kg/h) |
|---|---|---|---|---|---|
| HA-1D-S | 97 | 2.2 | 130 to 300 | 650 | 850 |
| HA-1D-H | 300 to 500 | 390 | 505 | ||
| HA-2D-S | 166 | 2.2 | 130 to 300 | 1150 | 1550 |
| HA-2D-H | 300 to 500 | 670 | 870 | ||
| HA-3D-S | 255 | 3.7 | 130 to 300 | 1810 | 2350 |
| HA-3D-H | 300 to 500 | 1000 | 1300 | ||
| HA-4D-S | 453 | 3.7 | 130 to 300 | 3200 | 4150 |
| HA-4D-H | 300 to 500 | 1810 | 2350 | ||
| HA-5D-S | 724 | 3.7 | 130 to 300 | 5200 | 6750 |
| HA-5D-H | 300 to 500 | 2930 | 3800 | ||
| HA-6D-S | 1060 | 5.5 | 130 to 300 | 7610 | 9850 |
| HA-6D-H | 300 to 500 | 4290 | 5550 | ||
| HA-7D-S | 1530 | 7.5 | 130 to 300 | 1970 | 14200 |
| HA-7D-H | 300 to 500 | 6180 | 8000 |
